Valve driver ECU · example

OK	verc (voltage domains, power, thermal) VERC_OK (1 warning(s))
Warning	datasheets + part rules SPECCHECK_WARN: 6 warning(s), 2 rule(s) checked
OK	netaudit (graph = schematic = pcb) NETAUDIT_OK (0 warning(s))
OK	KiCad DRC DRC_OK
OK	power loops + decoupling LOOPS_OK: 0 error(s), 6 warning(s)
OK	placement rules PLACE_OK: 35 of 50 placement rules outside limits, 10 review finding(s) (warnings); anchors: run/out/place_anchors.png
OK	JLC CPL emulation CPL_OK (9 land-pattern warnings: C16,D1,D2,D3,D4,D5,D6,L1,U3)
OK	JLC stock (3 boards) STOCK_OK
OK	housing + assembly CASE_OK
OK	3D models (warning only) MODELS3D_OK: all 96 parts with a body have a 3D model (4 without one by design: H1, H3, H2, H4)

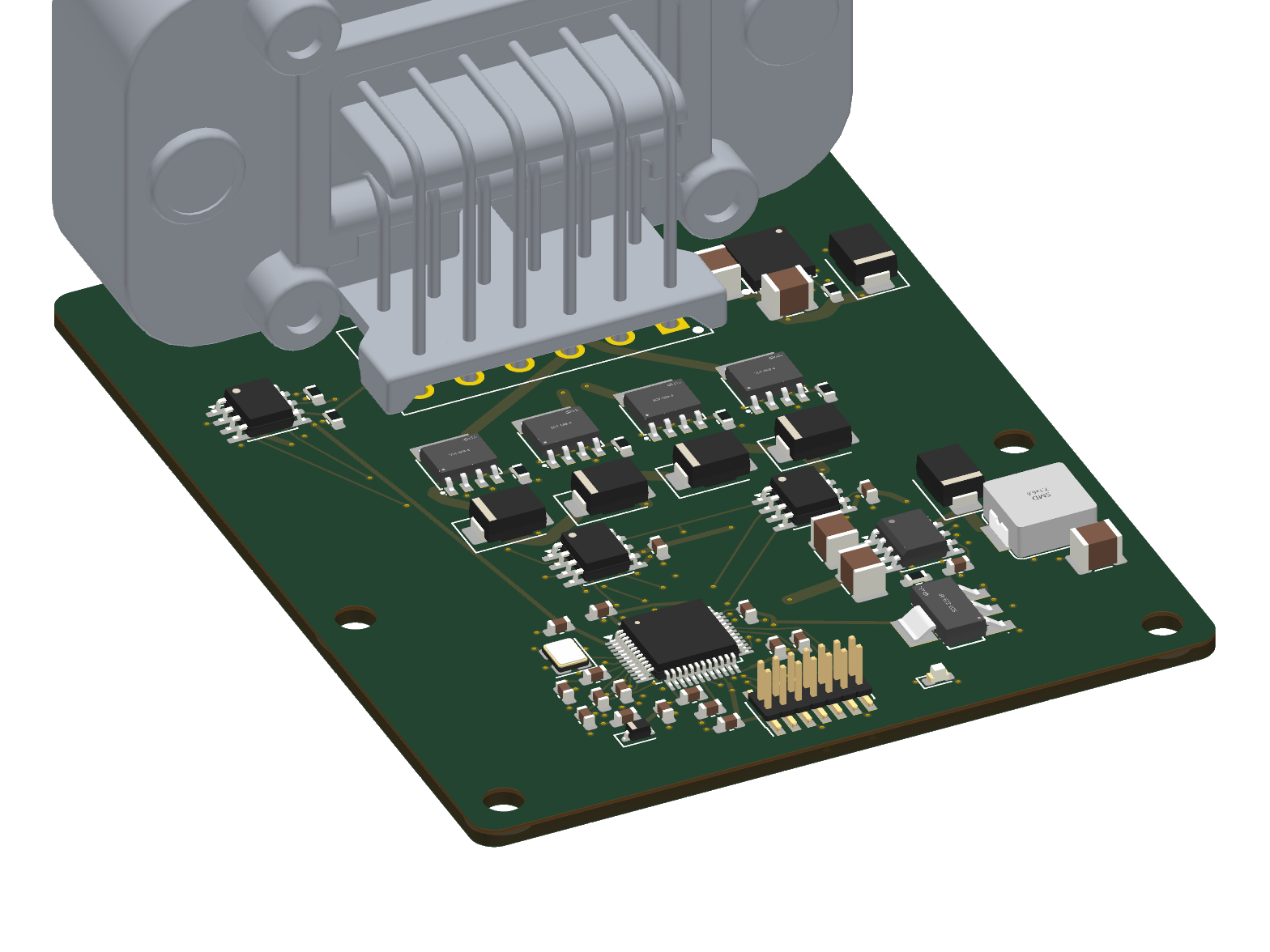

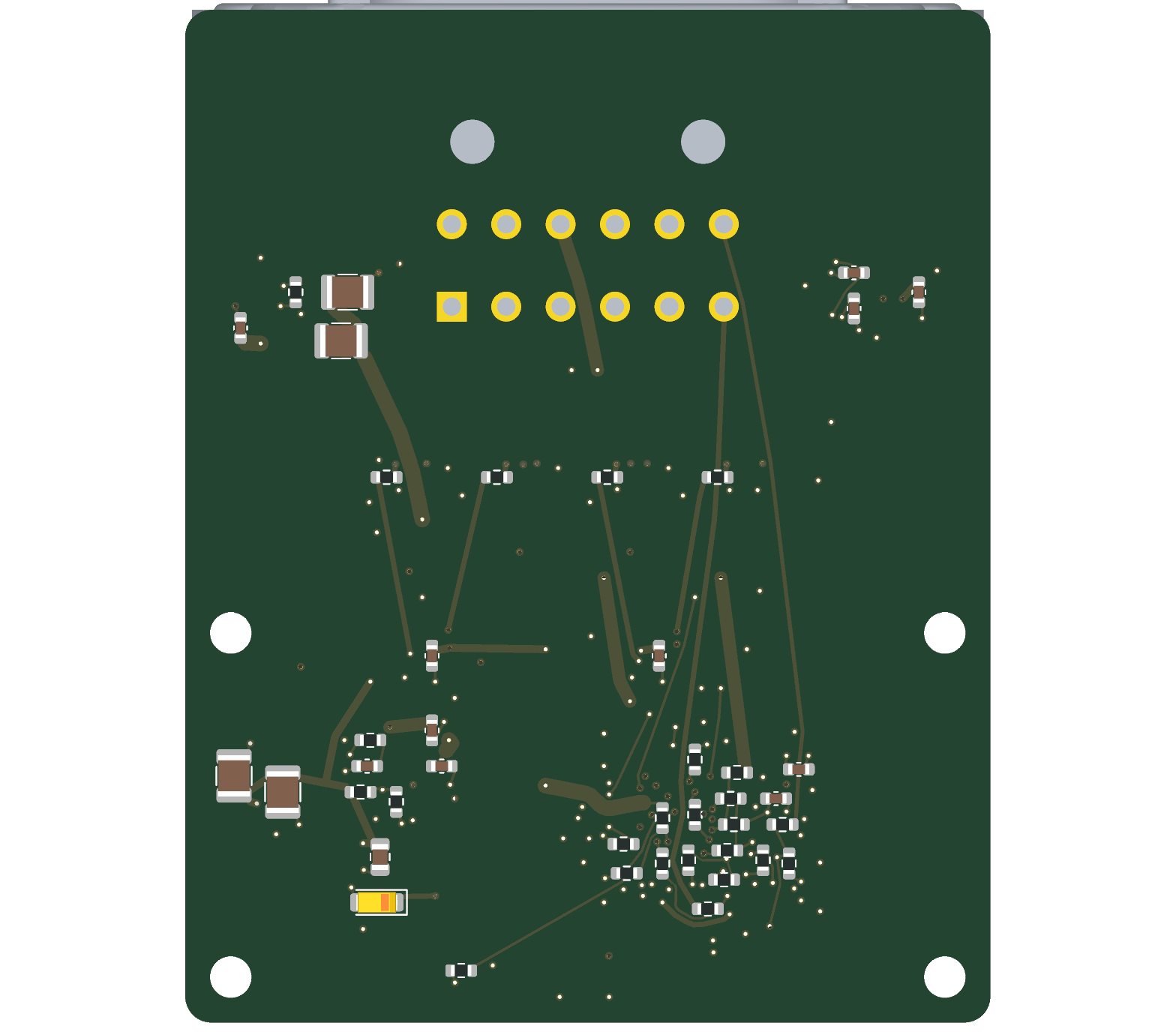

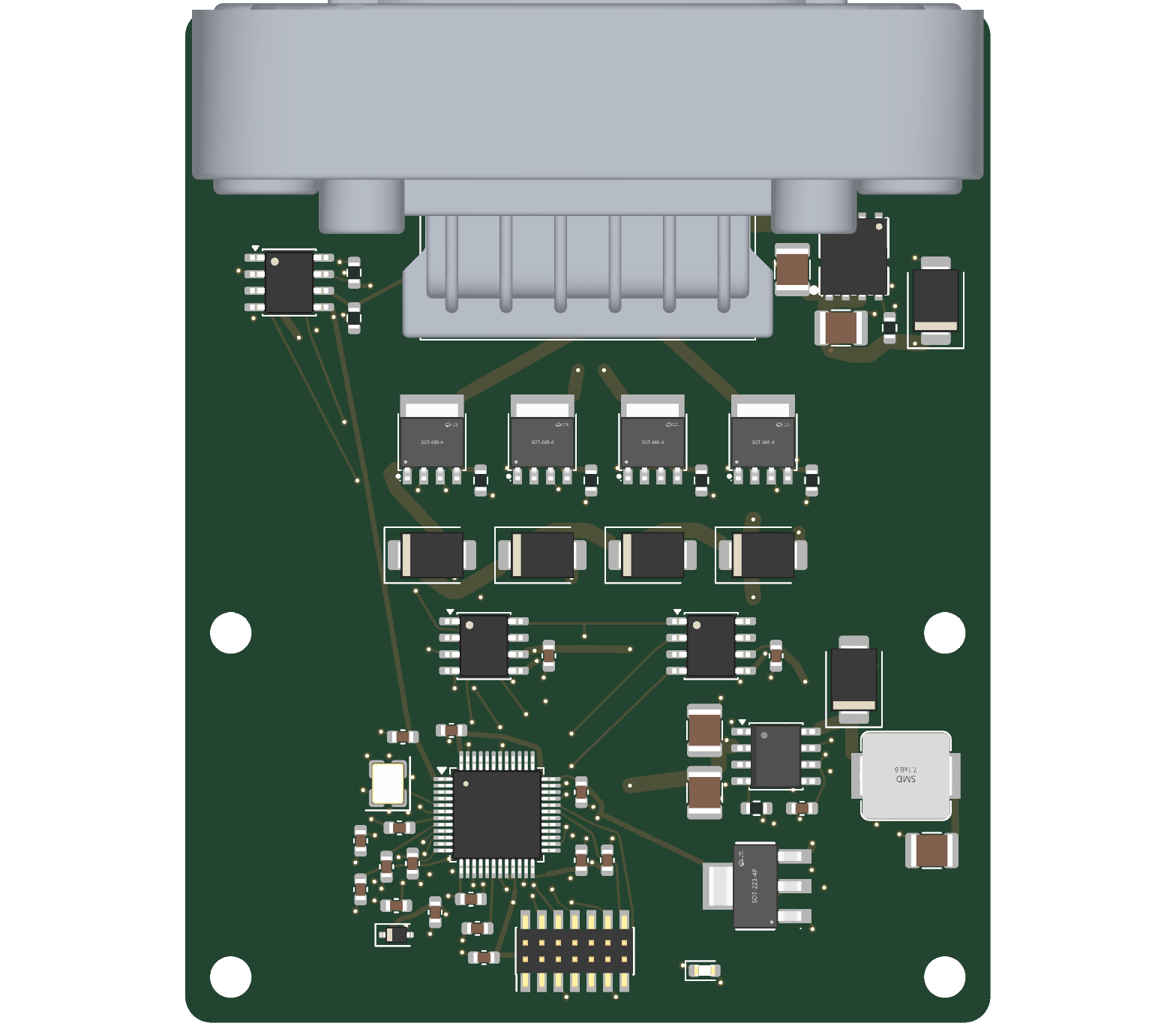

OK	render
