ESP32-C3 dual DC motor driver

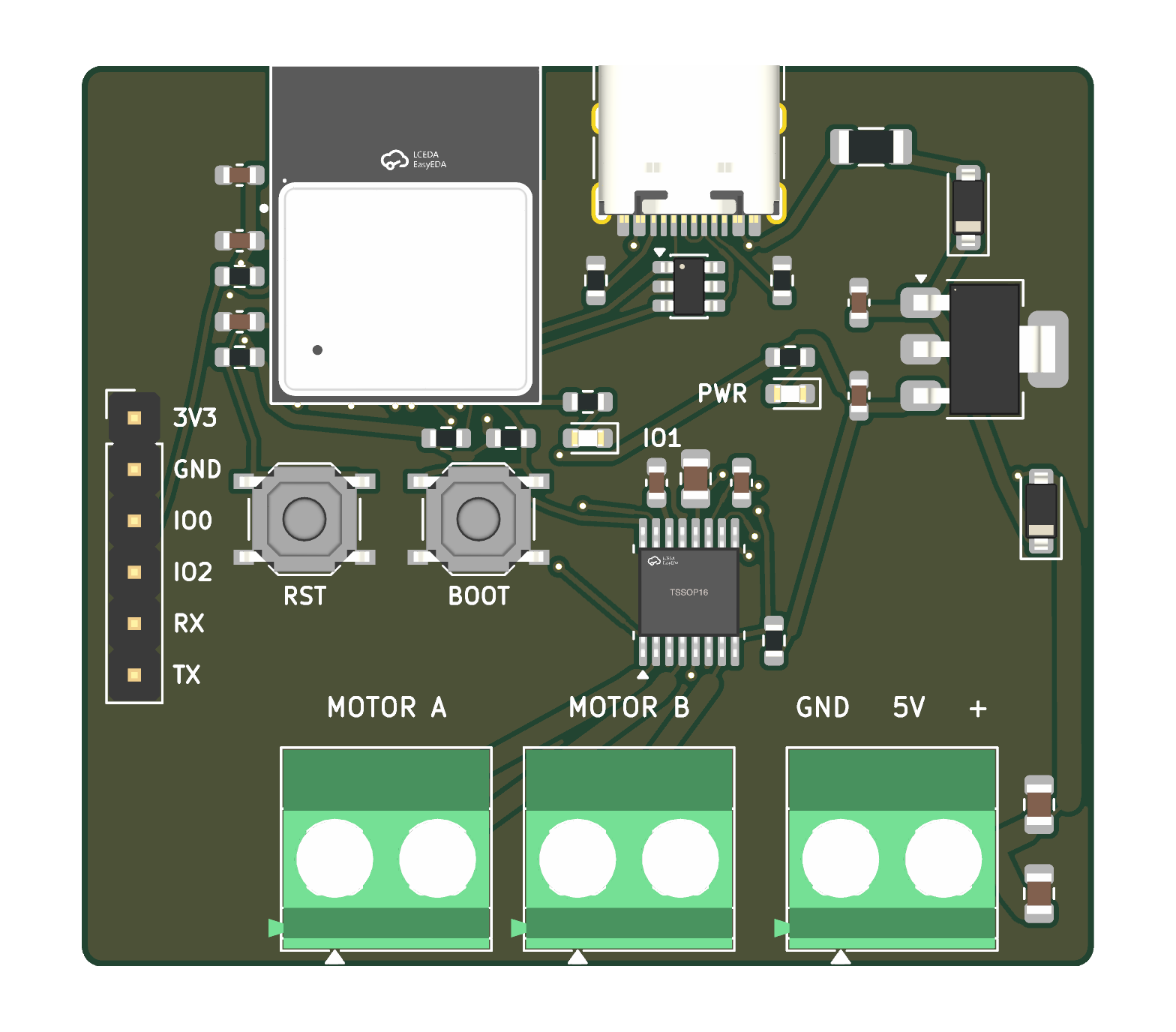

ESP32-C3-MINI-1 Wi-Fi/BLE board driving two 5 V brushed DC motors (up to 1.5 A each) through a DRV8833, with USB-C programming and screw terminals.
Examples
Boards designed with faezor, from a request in plain words to order-ready files: each passed the whole verification gate. Open one to look at it in 3D, read its checks and download its files.
Delta-robot vision pick-and-place controller
STM32H743 controller with OV5640 camera port, three TMC2209 stepper drivers, vacuum outputs, E-stop loop and CAN FD on one 23-pin AMPSEAL connector, 24 V in.
Valve driver ECU
Sealed 12 V automotive ECU: four 2.5 A low-side valve outputs, CAN FD, ignition and sensor inputs, STM32G474, one DEUTSCH DTM 12-pin connector, die-cast wedge housing sealed with a tongue and groove and a pressure-compensation vent.
Rover drive controller

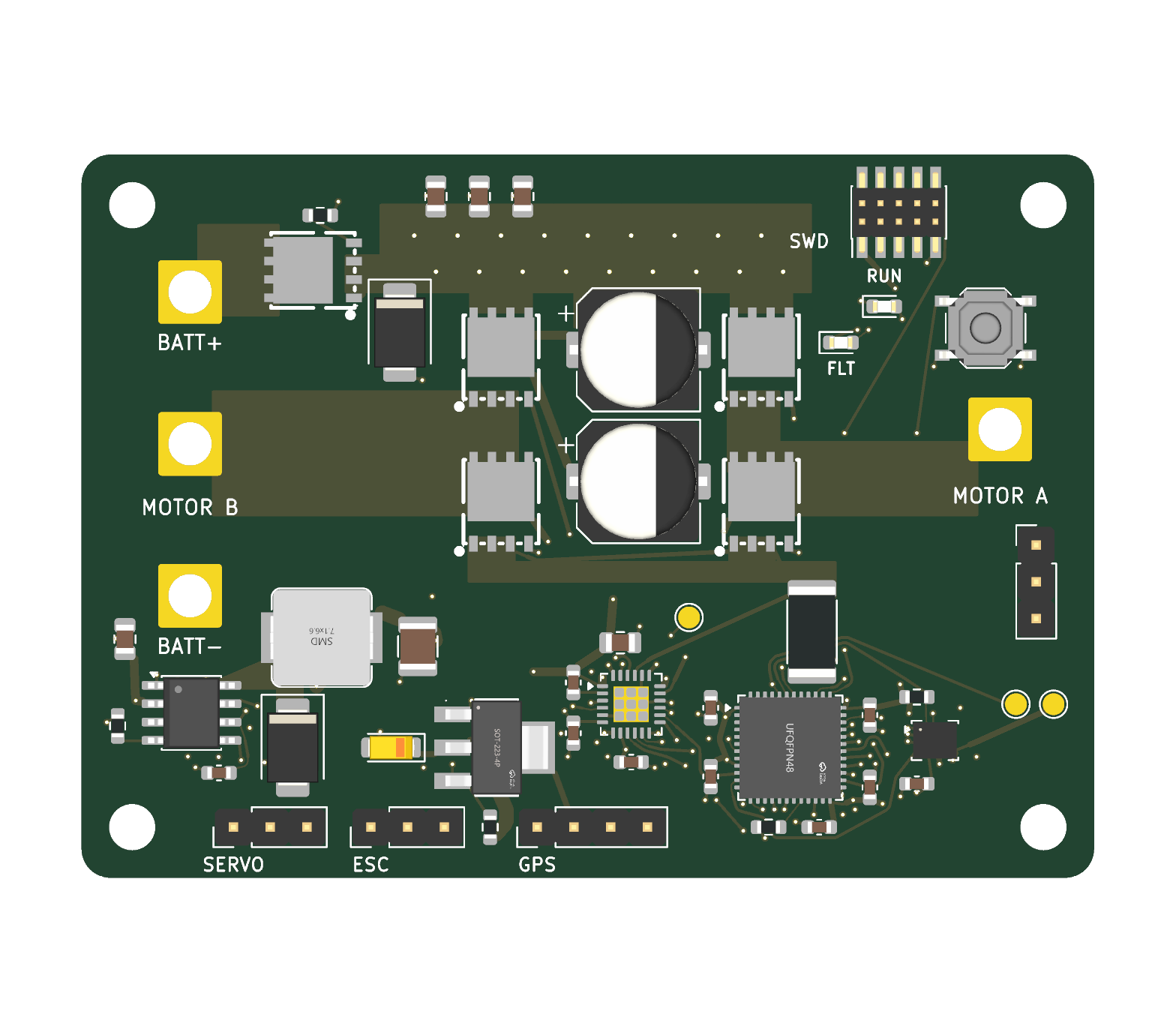

2S-3S LiPo rover controller: 15 A brushed H-bridge, servo and ESC outputs, STM32F411, IMU and GPS/console headers on 4 layers.
sim-pilot: STM32F411 autopilot board for the World
An STM32F411 board for pcb.faezor.ai's World: an LSM6DSO IMU on I2C, a GPS module header, four servo / ESC outputs, a UART and an SWD header - its firmware keeps a car on its heading or levels a drone, in the simulator and on the real board.
sim-blinky: STM32F411 board for the firmware simulator

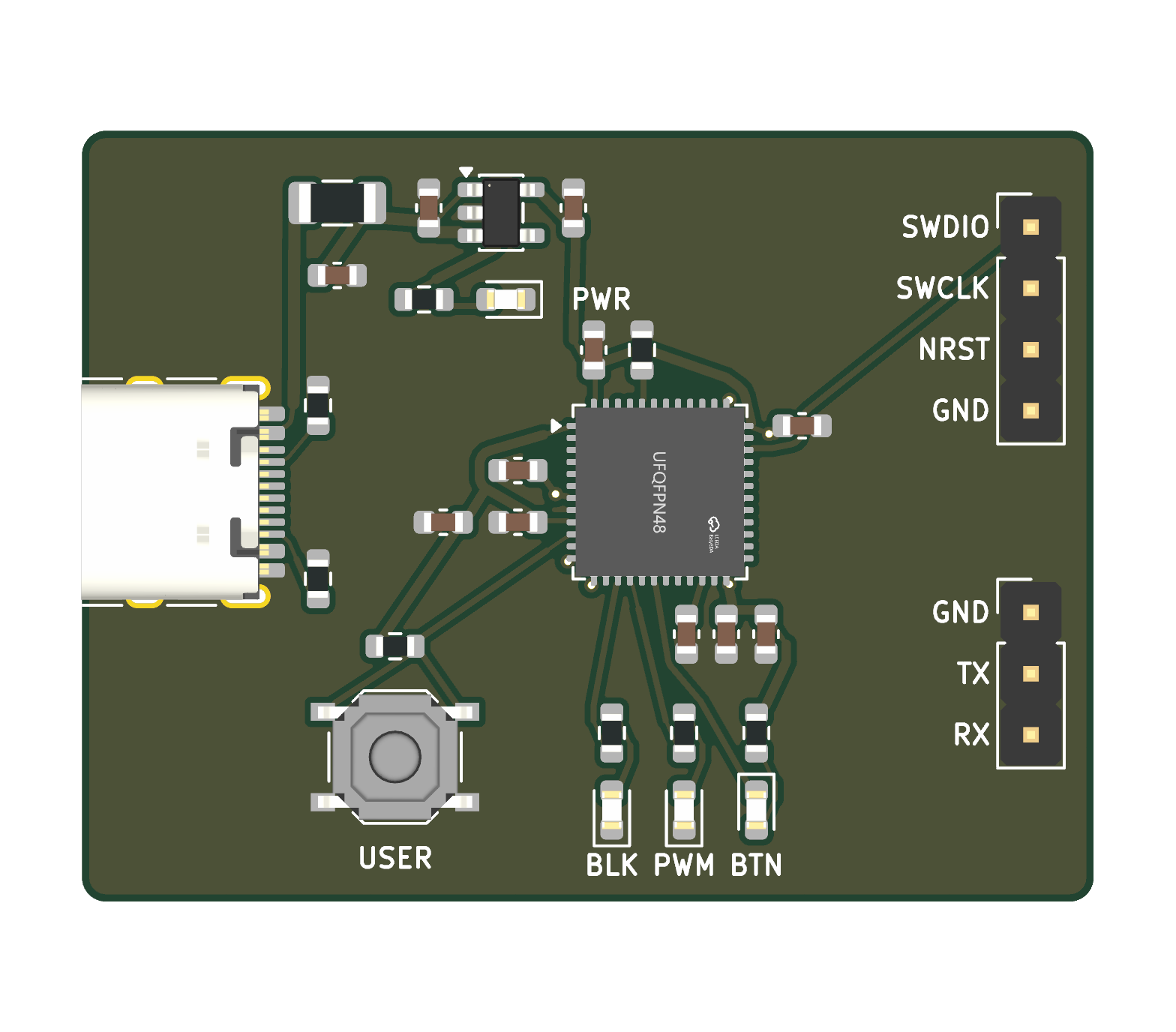

A small STM32F411 board whose firmware runs on pcb.faezor.ai's simulator: three LEDs (blink, PWM, button), a user button, a UART header and an SWD header, USB-C for power.
ESP32-S3 Motion & Pressure Node

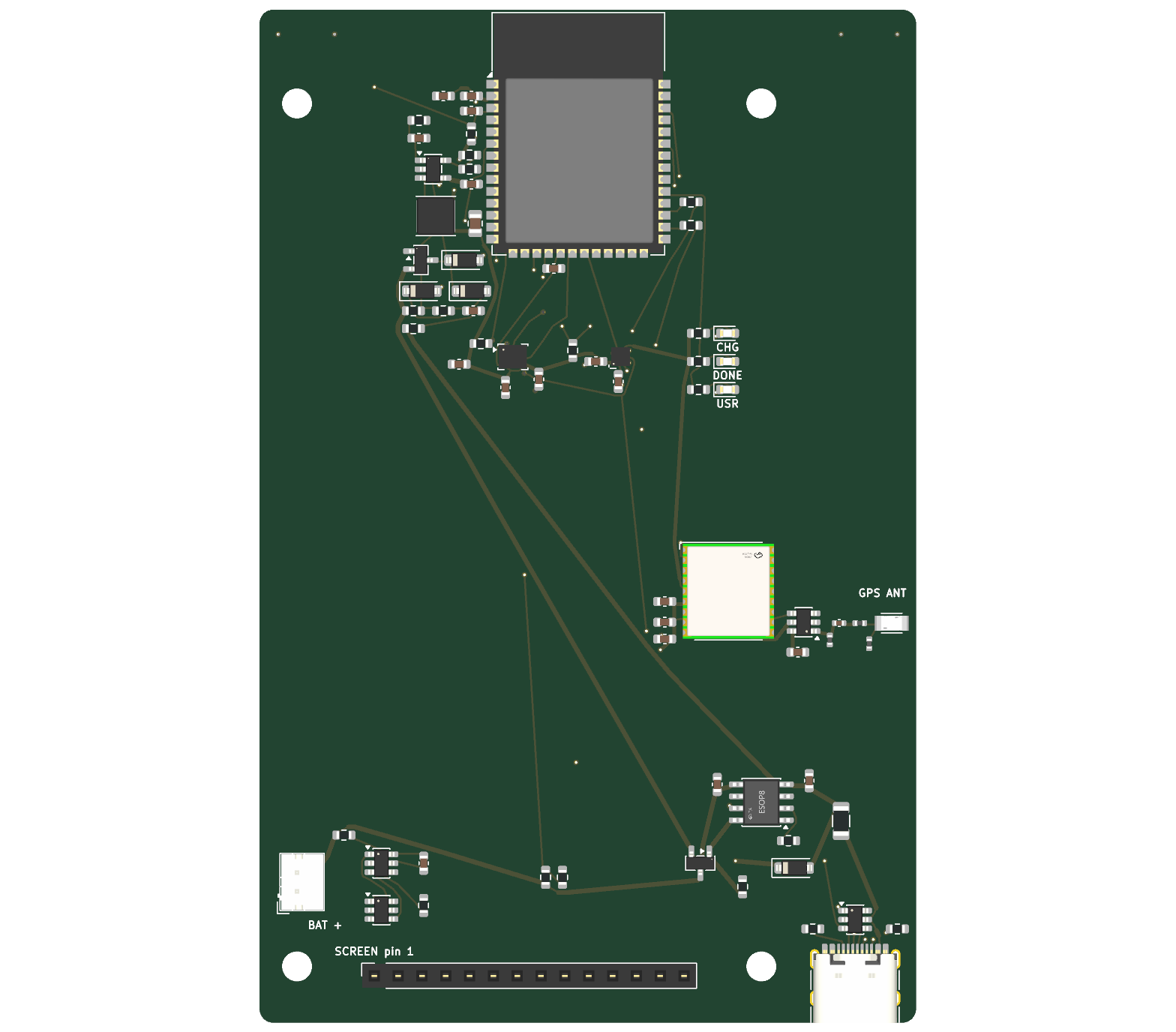

ESP32-S3 board with BMP581 barometer, ASM330LHH IMU, USB-C (flash + Li-ion charge) and a JST-PH battery connector.
Electronic dice with 7 LEDs

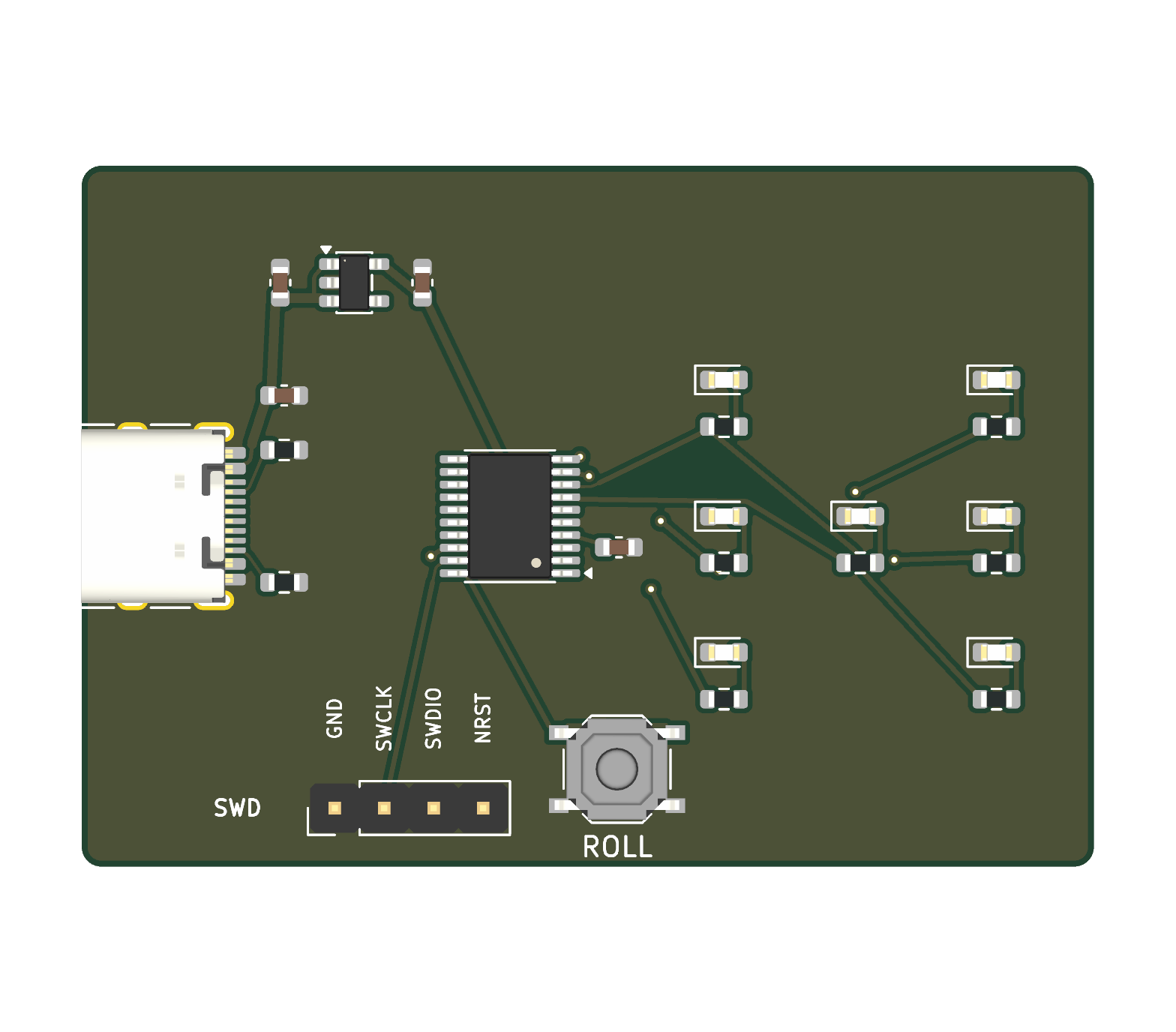

USB-C powered pocket dice: press the button and a random number 1-6 lights up as a dice face of 7 LEDs (STM32G030, SWD header for the firmware).
USB-C to UART Adapter (CH340C, 3.3 V)

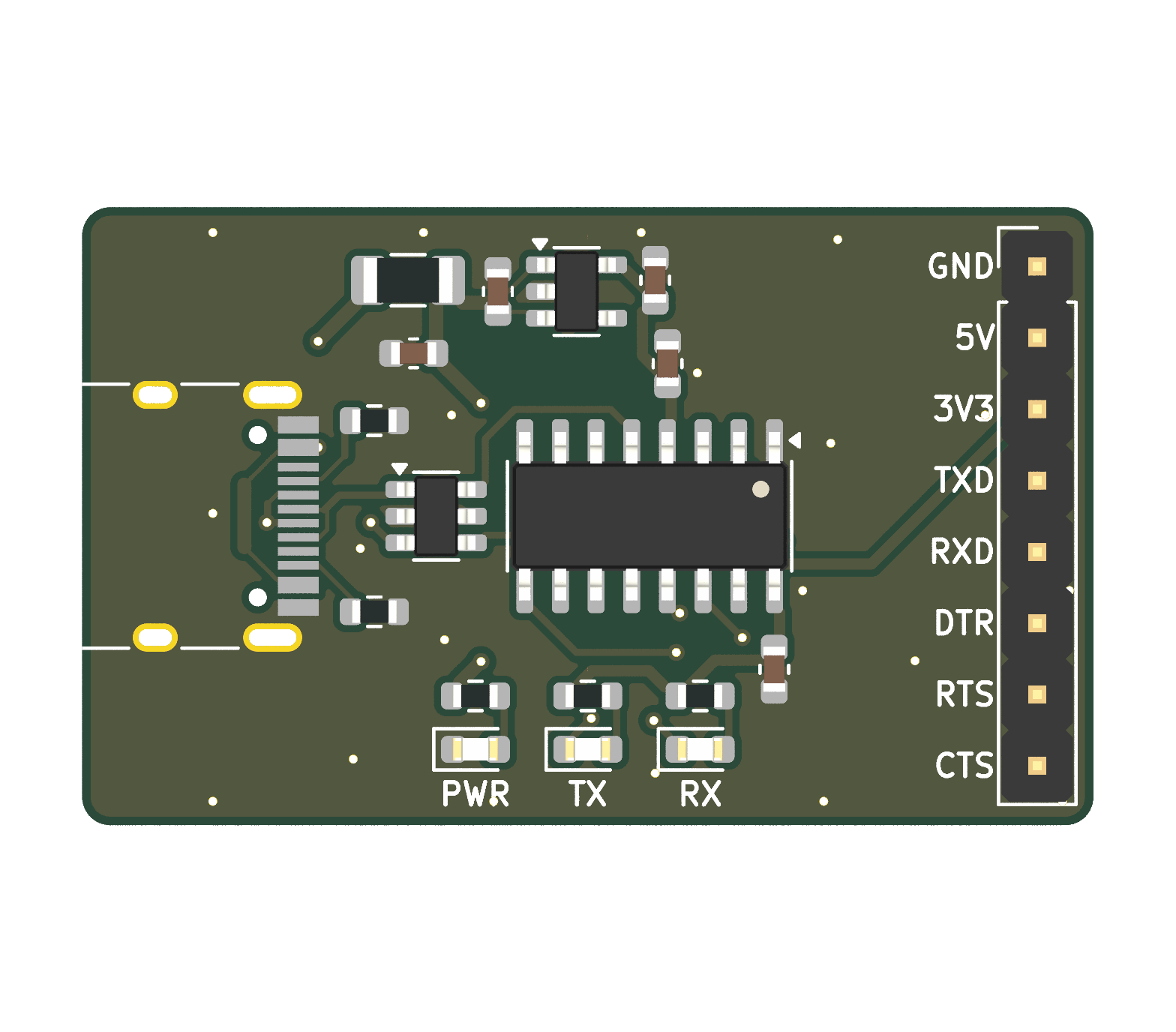

Small USB-C to 3.3 V serial (UART) adapter based on the WCH CH340C, with TX/RX/power LEDs, ESD protection and an 8-pin 2.54 mm header (GND, 5V, 3V3, TXD, RXD, DTR, RTS, CTS).
