Valve driver ECU
Sealed 12 V automotive ECU: four 2.5 A low-side valve outputs, CAN FD, ignition and sensor inputs, STM32G474, one DEUTSCH DTM 12-pin connector, die-cast wedge housing sealed with a tongue and groove and a pressure-compensation vent.
| OK | verc (voltage domains, power, thermal) VERC_OK (1 warning(s)) |
| Warning | datasheets + part rules SPECCHECK_WARN: 6 warning(s), 2 rule(s) checked |
| OK | netaudit (graph = schematic = pcb) NETAUDIT_OK (0 warning(s)) |
| OK | KiCad DRC DRC_OK |
| OK | power loops + decoupling LOOPS_OK: 0 error(s), 6 warning(s) |
| OK | placement rules PLACE_OK: 35 of 50 placement rules outside limits, 10 review finding(s) (warnings); anchors: run/out/place_anchors.png |
| OK | JLC CPL emulation CPL_OK (9 land-pattern warnings: C16,D1,D2,D3,D4,D5,D6,L1,U3) |
| OK | JLC stock (3 boards) STOCK_OK |
| OK | housing + assembly CASE_OK |
| OK | 3D models (warning only) MODELS3D_OK: all 96 parts with a body have a 3D model (4 without one by design: H1, H3, H2, H4) |
| OK | render |
- 3D model (glTF)board.glb · 544.5 KB

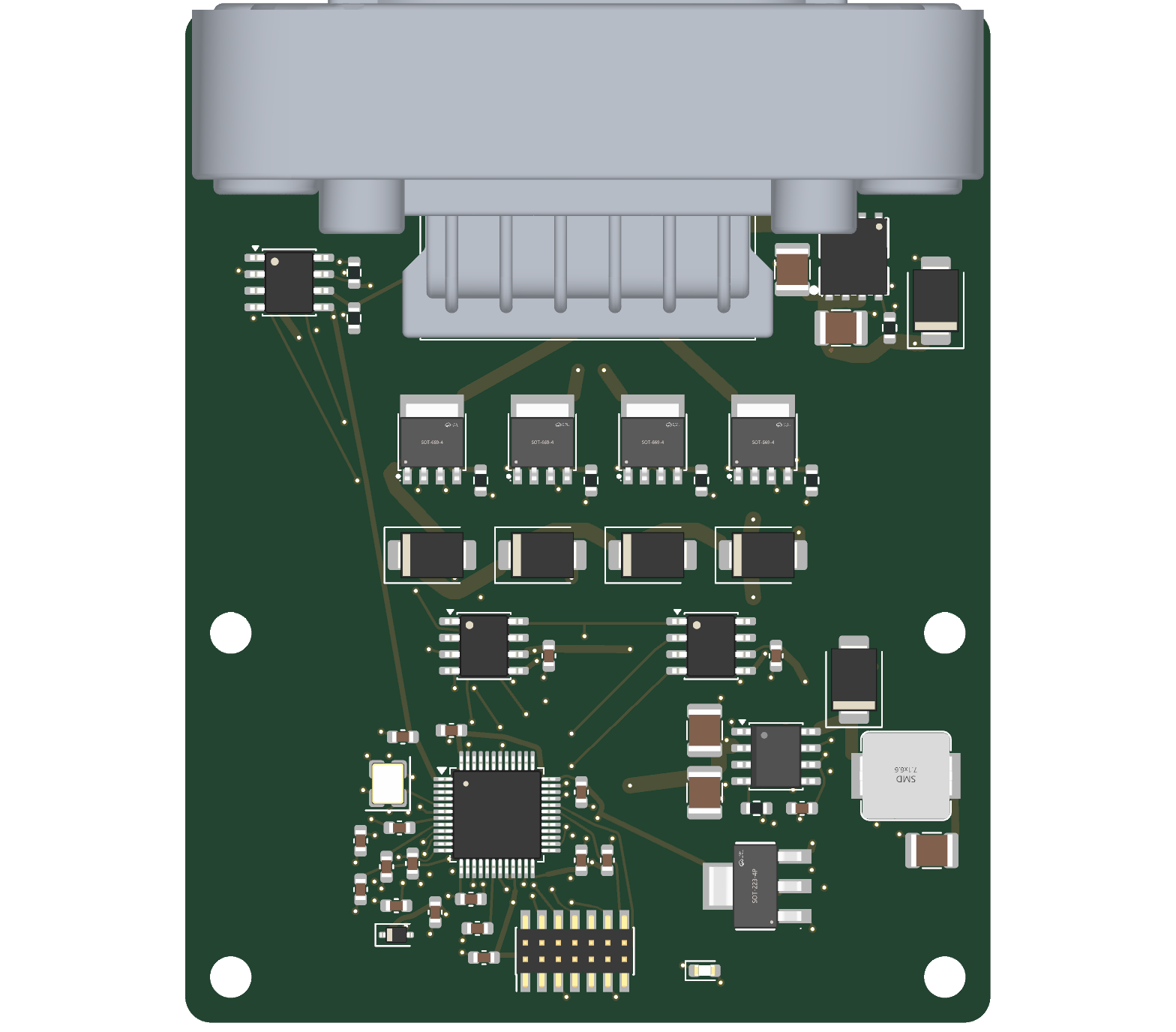

- Render, toprender_top.png · 137.2 KB

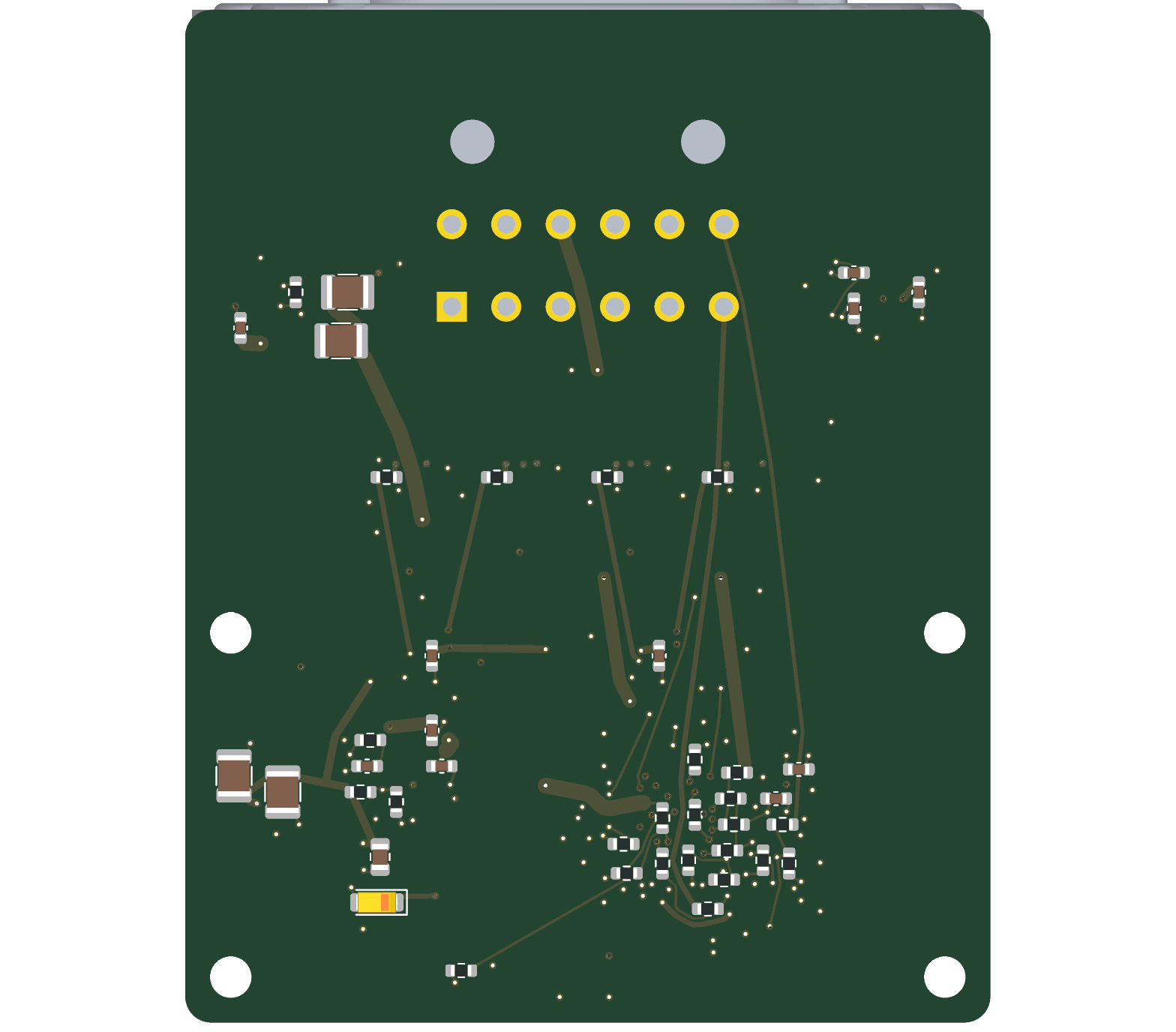

- Render, bottomrender_bottom.png · 94.5 KB

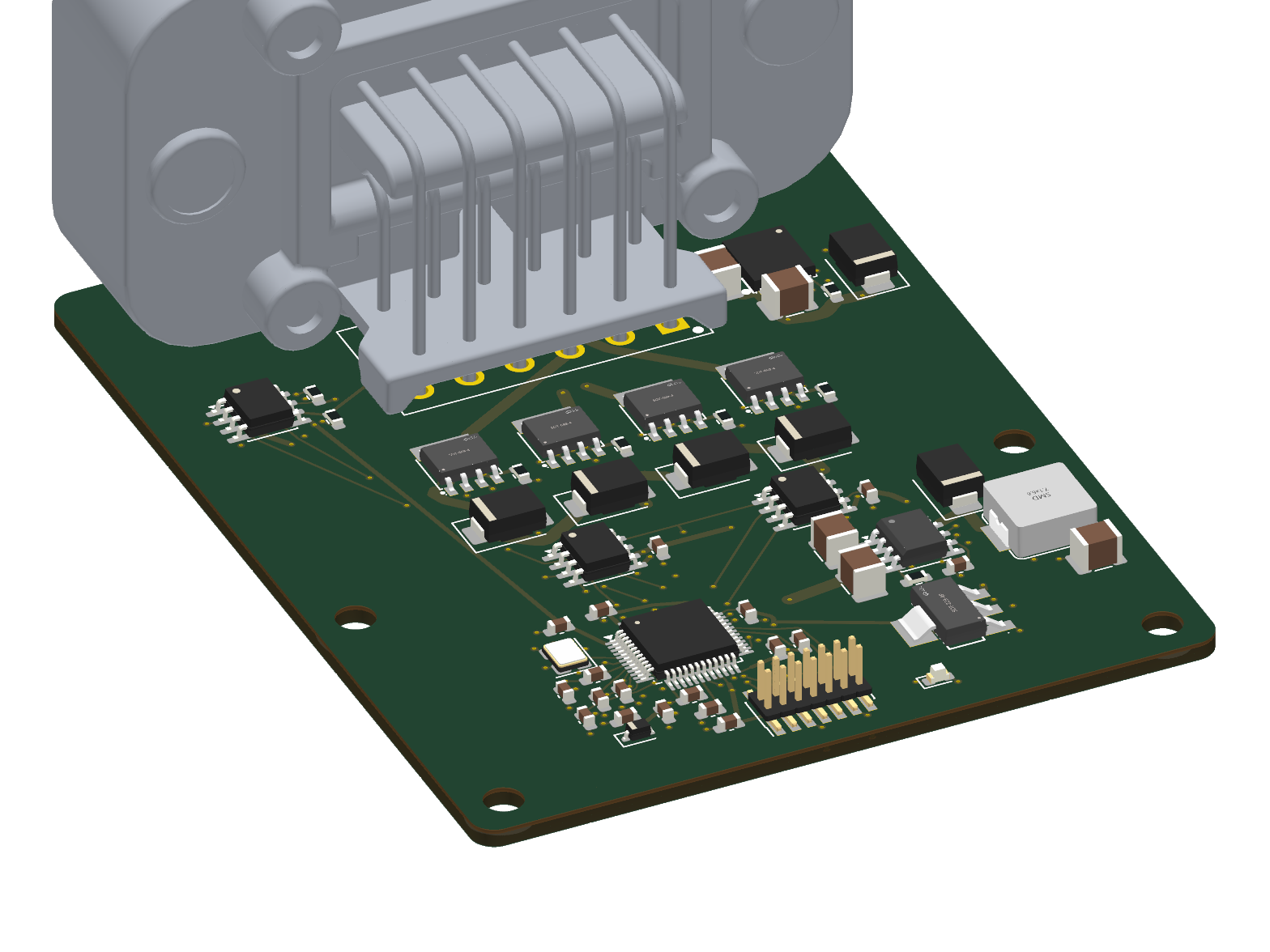

- Render, isometricrender_iso.png · 358.5 KB
- Schematic (PDF)schematic.pdf · 342.9 KB
- Gerbers + drill for JLCPCBgerbers_jlcpcb.zip · 86.5 KB
- BOM for JLCPCB assemblybom_jlc.csv · 1.9 KB
- Pick & place (CPL)cpl_jlc.csv · 3.8 KB
- Verification summarycheck_summary.jsonl · 1.1 KB
- Electrical review (voltage domains, power, thermal)verc_report.md · 14.6 KB
