ESP32-C3 dual DC motor driver
ESP32-C3-MINI-1 Wi-Fi/BLE board driving two 5 V brushed DC motors (up to 1.5 A each) through a DRV8833, with USB-C programming and screw terminals.
| OK | verc (voltage domains, power, thermal) VERC_OK (5 warning(s)) |
| Warning | datasheets + part rules SPECCHECK_WARN: 4 warning(s), 13 rule(s) checked |
| OK | netaudit (graph = schematic = pcb) NETAUDIT_OK (0 warning(s)) |

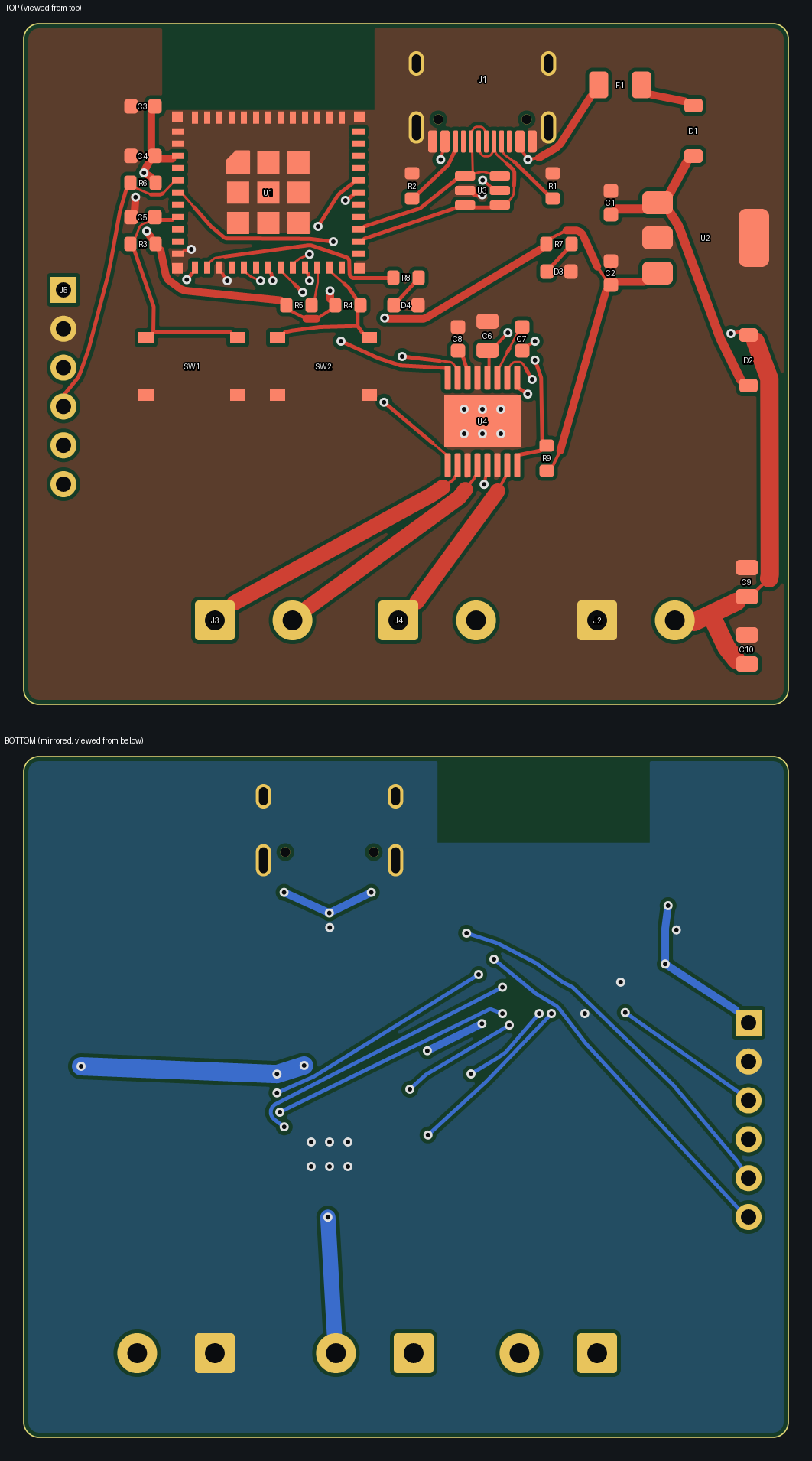

| OK | KiCad DRC DRC_OK |

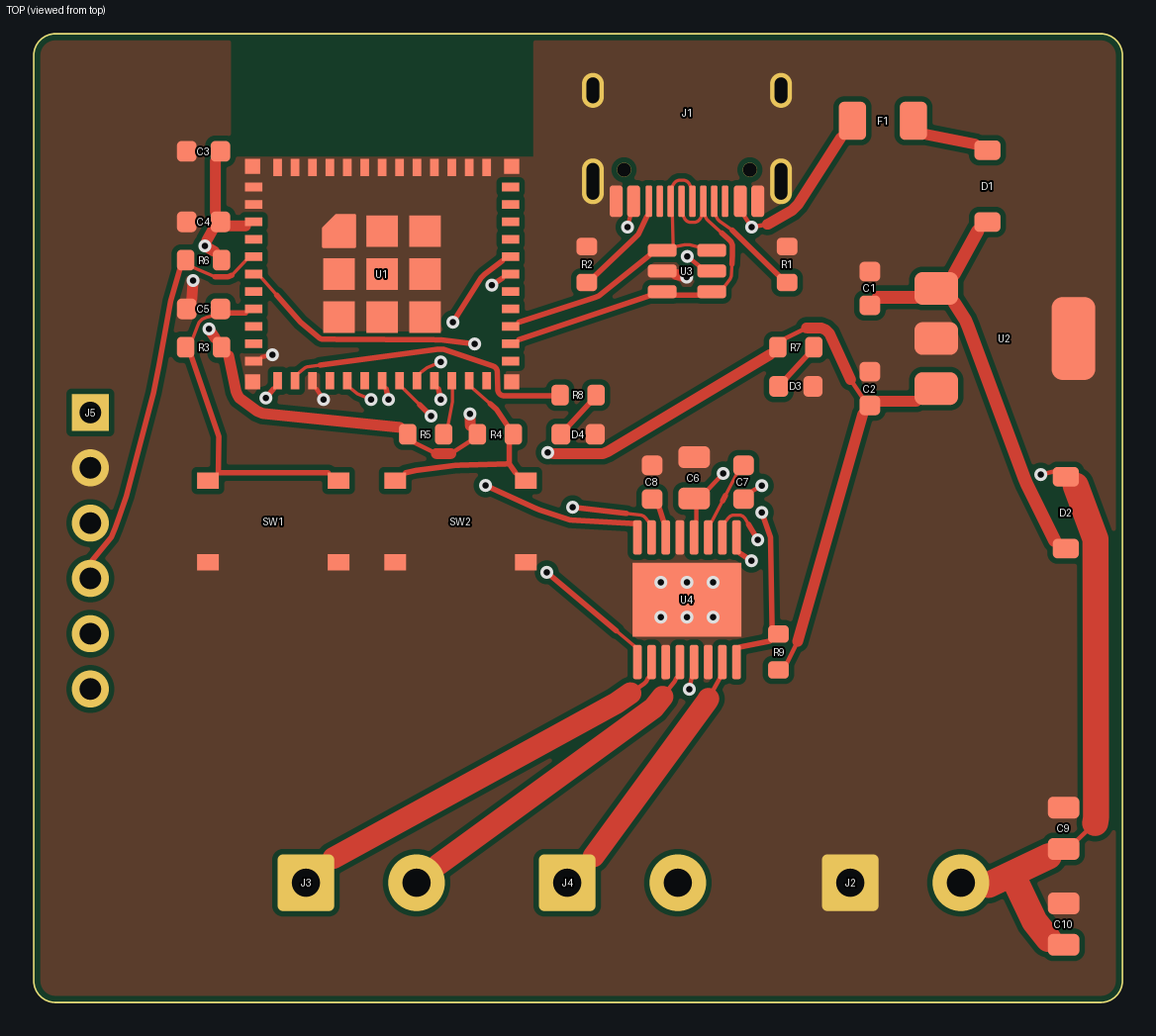

| OK | power loops + decoupling LOOPS_OK: 0 error(s), 1 warning(s) |
| OK | placement rules PLACE_OK: 1 of 10 placement rules outside limits, 4 review finding(s) (warnings); anchors: run/out/place_anchors.png |

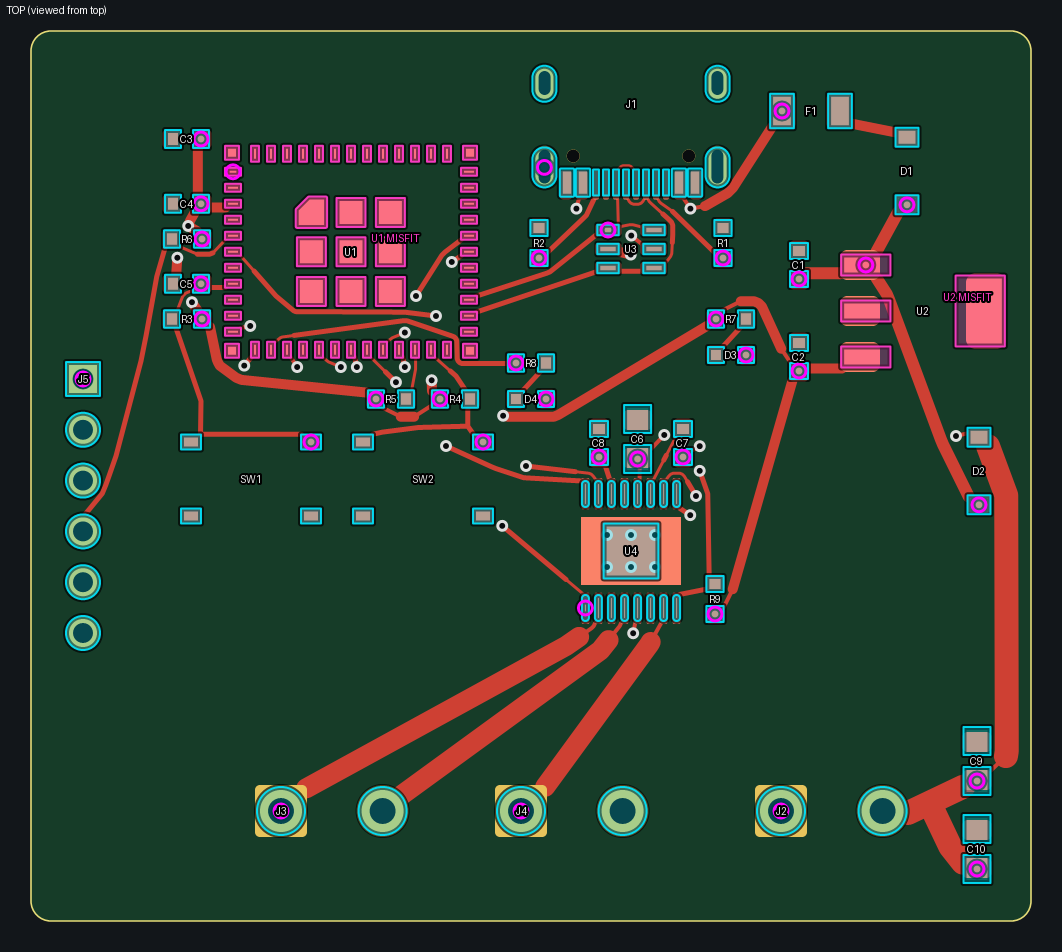

| OK | JLC CPL emulation CPL_OK |
| OK | JLC stock (3 boards) STOCK_OK |
| OK | 3D models (warning only) MODELS3D_OK: all 35 parts with a body have a 3D model |
| OK | render |
- 3D model (glTF)board.glb · 252.8 KB

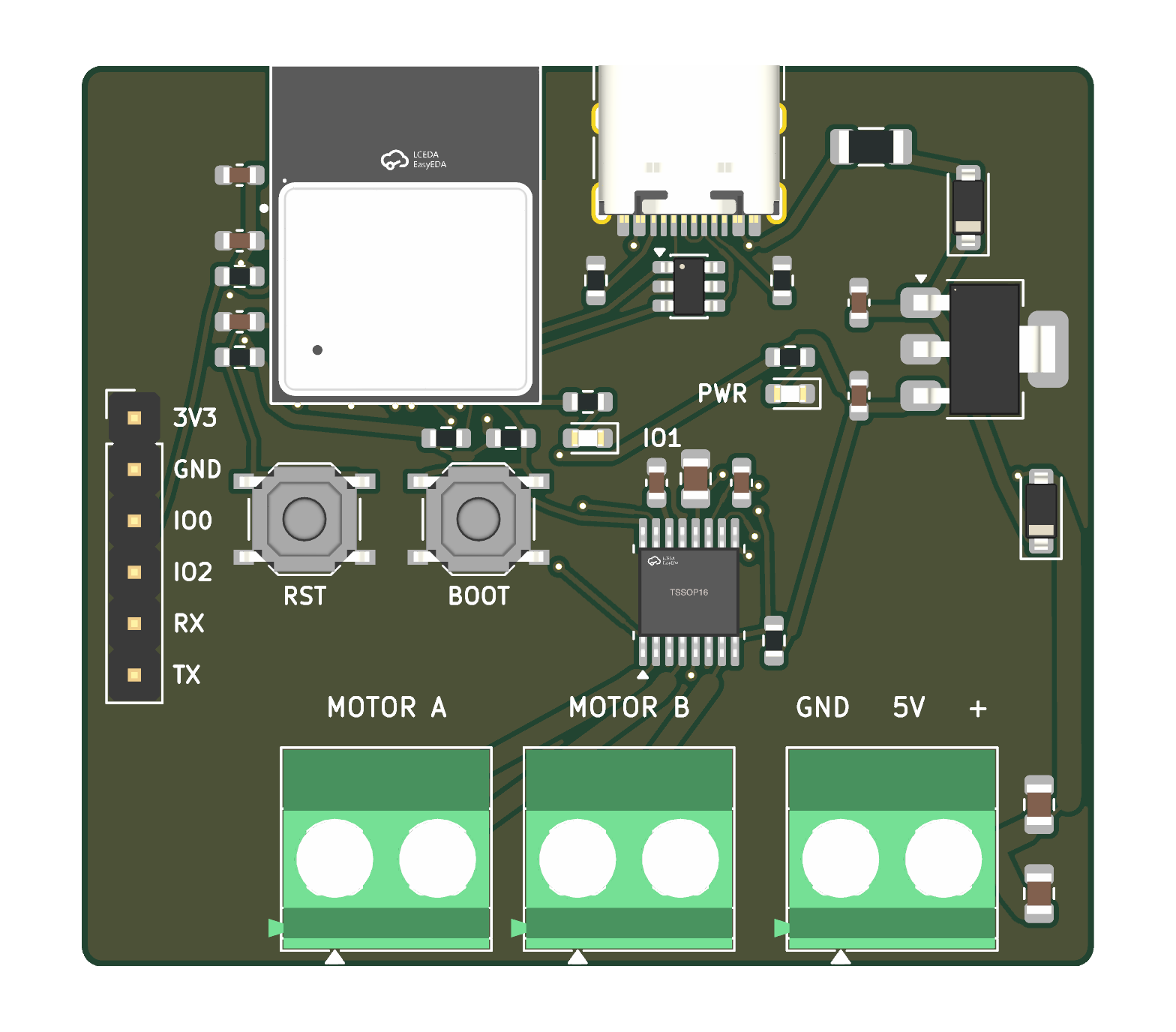

- Render, toprender_top.png · 120.4 KB

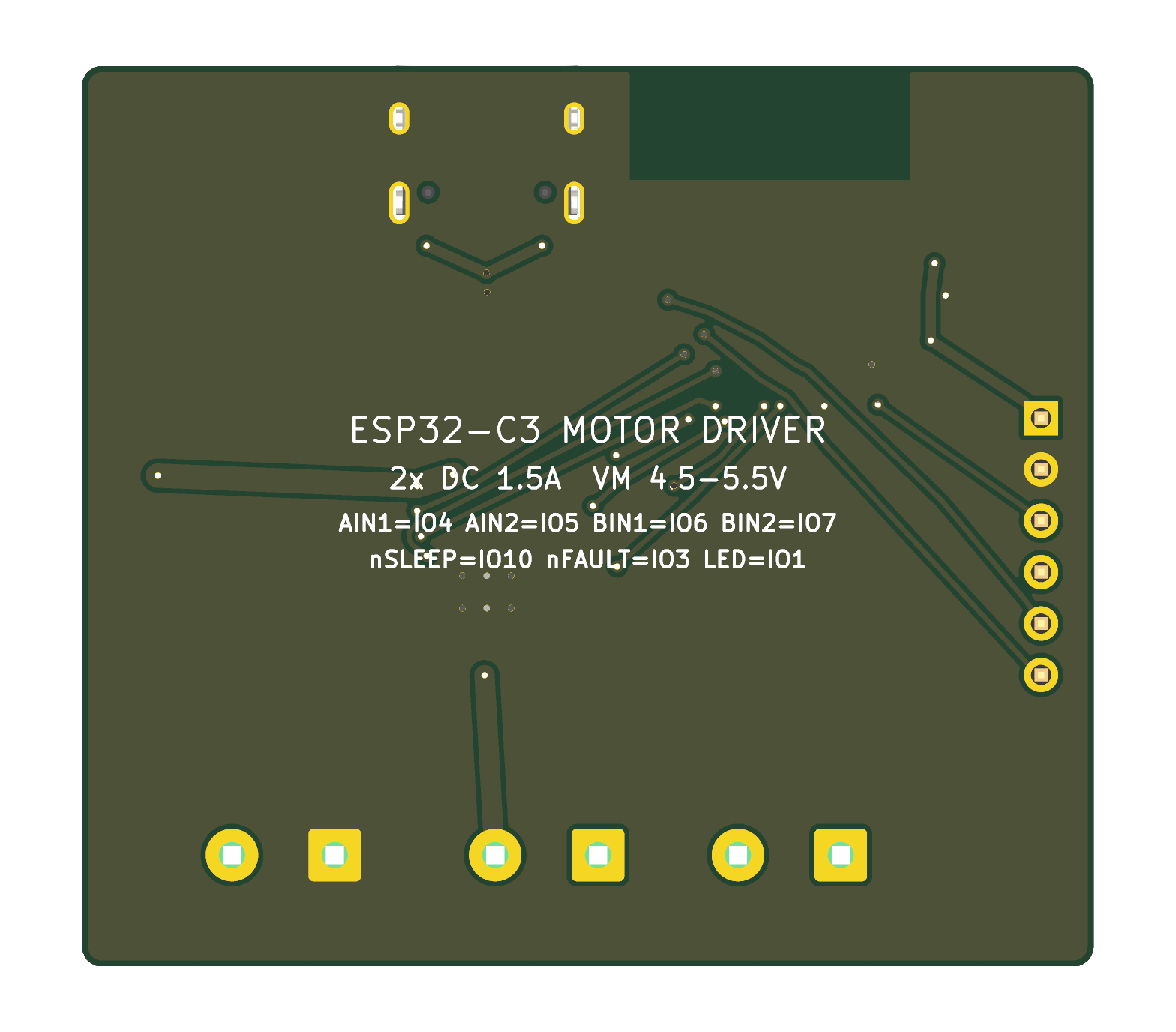

- Render, bottomrender_bottom.png · 80.2 KB

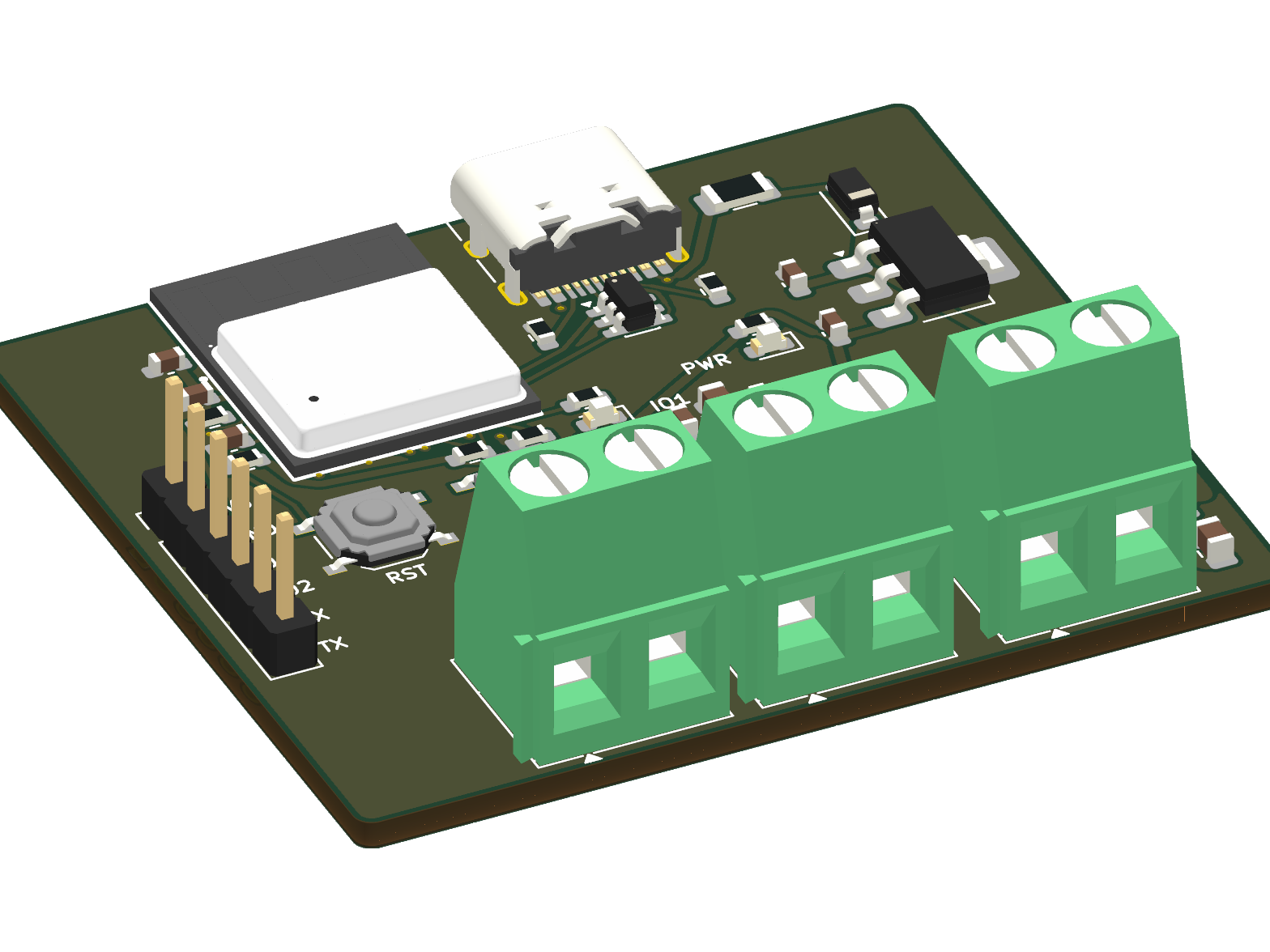

- Render, isometricrender_iso.png · 258.5 KB
- Schematic (PDF)schematic.pdf · 187.7 KB
- Gerbers + drill for JLCPCBgerbers_jlcpcb.zip · 84.9 KB
- BOM for JLCPCB assemblybom_jlc.csv · 1.4 KB
- Full BOMbom_full.csv · 1.9 KB
- Pick & place (CPL)cpl_jlc.csv · 1.4 KB
- Verification summarycheck_summary.jsonl · 933 B
- Electrical review (voltage domains, power, thermal)verc_report.md · 9.8 KB
- JLC stock checkstock_check.txt · 2.5 KB
- Placement reviewplace_rules.md · 1.7 KB
