USB-C to UART Adapter (CH340C, 3.3 V)
Small USB-C to 3.3 V serial (UART) adapter based on the WCH CH340C, with TX/RX/power LEDs, ESD protection and an 8-pin 2.54 mm header (GND, 5V, 3V3, TXD, RXD, DTR, RTS, CTS).
| OK | verc (voltage domains, power, thermal) VERC_OK (0 warning(s)) |
| OK | netaudit (graph = schematic = pcb) NETAUDIT_OK (0 warning(s)) |
| OK | KiCad DRC DRC_OK |

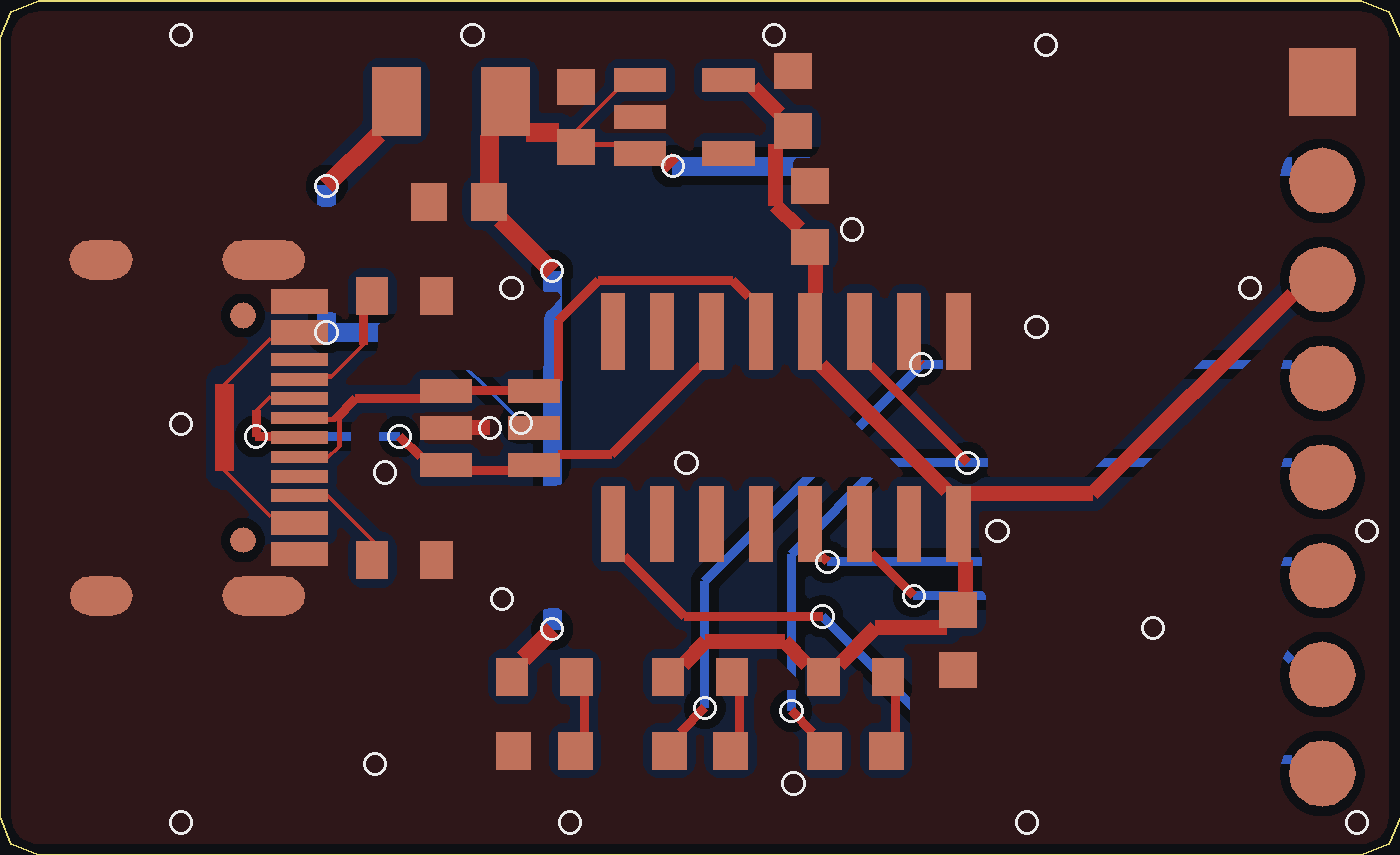

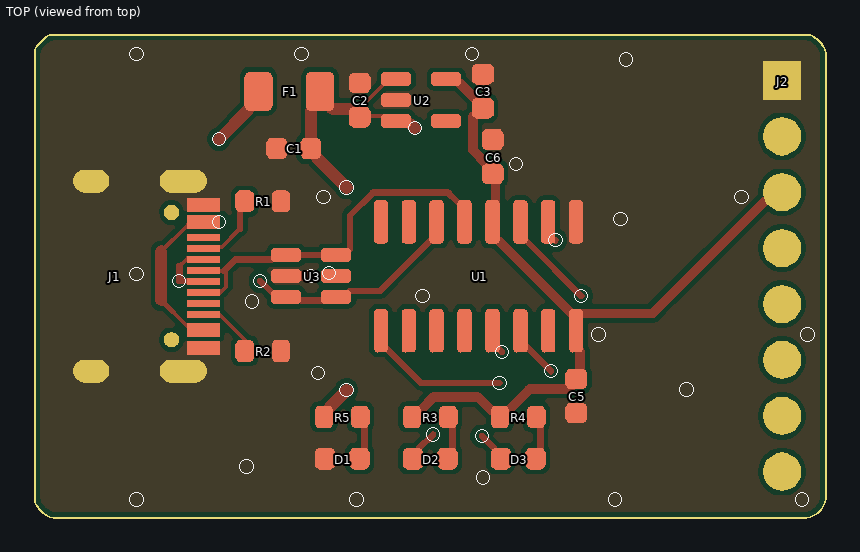

| OK | power loops + decoupling LOOPS_OK: 0 error(s), 1 warning(s) |
| OK | placement rules PLACE_OK: 2 of 6 placement rules outside limits, 0 review finding(s) (warnings); anchors: run/out/place_anchors.png |

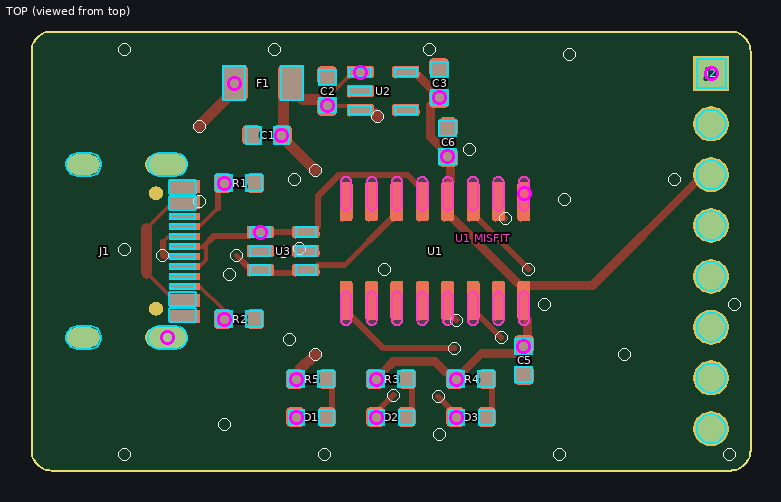

| OK | JLC CPL emulation CPL_OK |
| OK | JLC stock (3 boards) STOCK_OK |
| OK | render |
- 3D model (glTF)board.glb · 134.8 KB

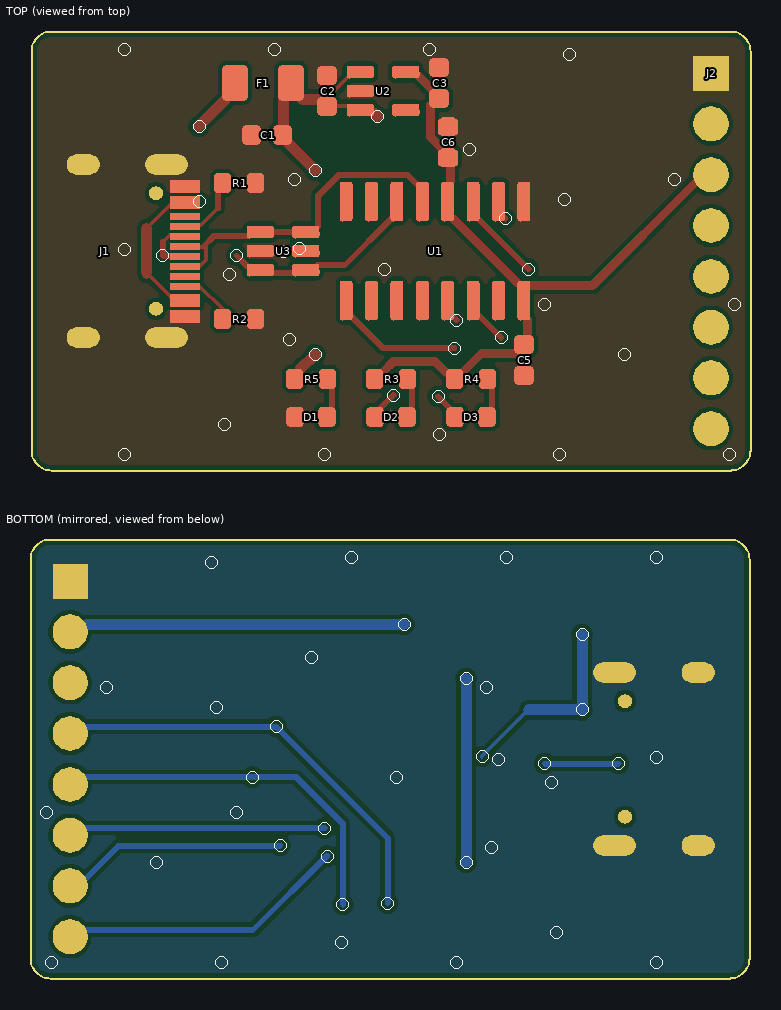

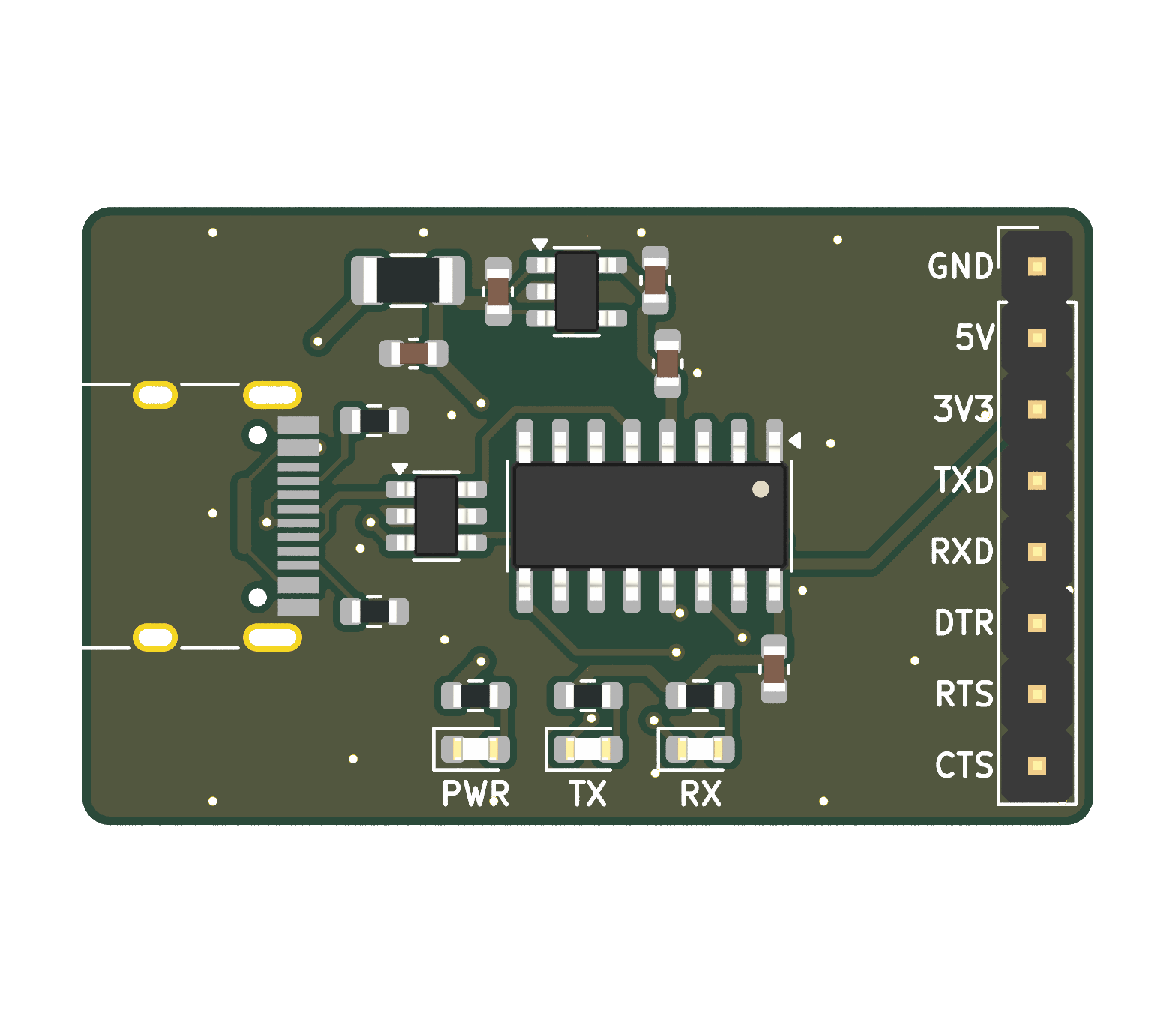

- Render, toprender_top.png · 104.5 KB

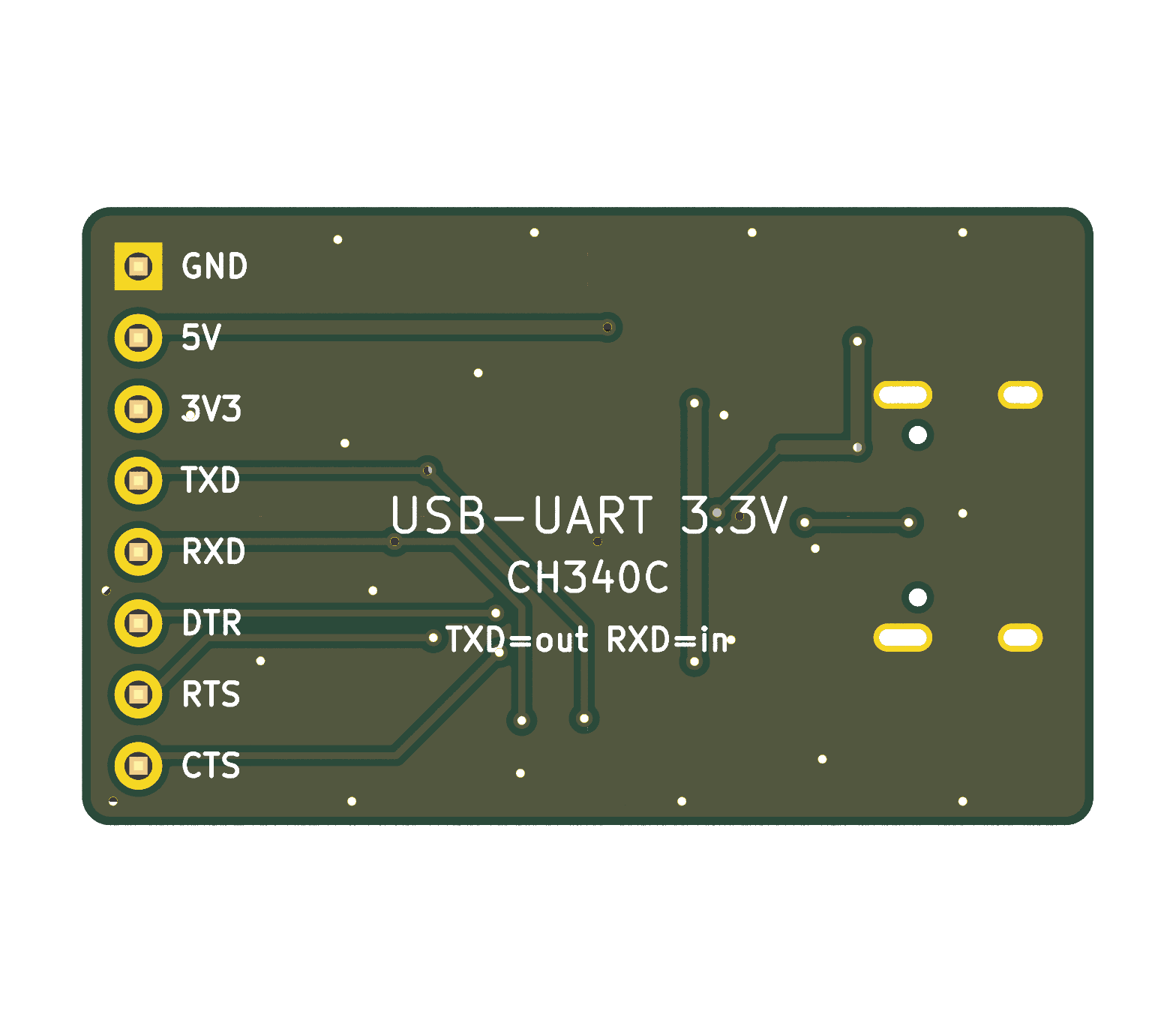

- Render, bottomrender_bottom.png · 81.2 KB
- Schematic (PDF)schematic.pdf · 95.9 KB
- Gerbers + drill for JLCPCBgerbers_jlcpcb.zip · 50.8 KB
- BOM for JLCPCB assemblybom_jlc.csv · 642 B
- Full BOMbom_full.csv · 906 B
- Pick & place (CPL)cpl_jlc.csv · 770 B
- Verification summarycheck_summary.jsonl · 692 B
- Electrical review (voltage domains, power, thermal)verc_report.md · 5.4 KB
- JLC stock checkstock_check.txt · 1.3 KB
- Placement reviewplace_rules.md · 676 B
